SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Origin: Mainland China

Type: Hand Tool Parts

Description:

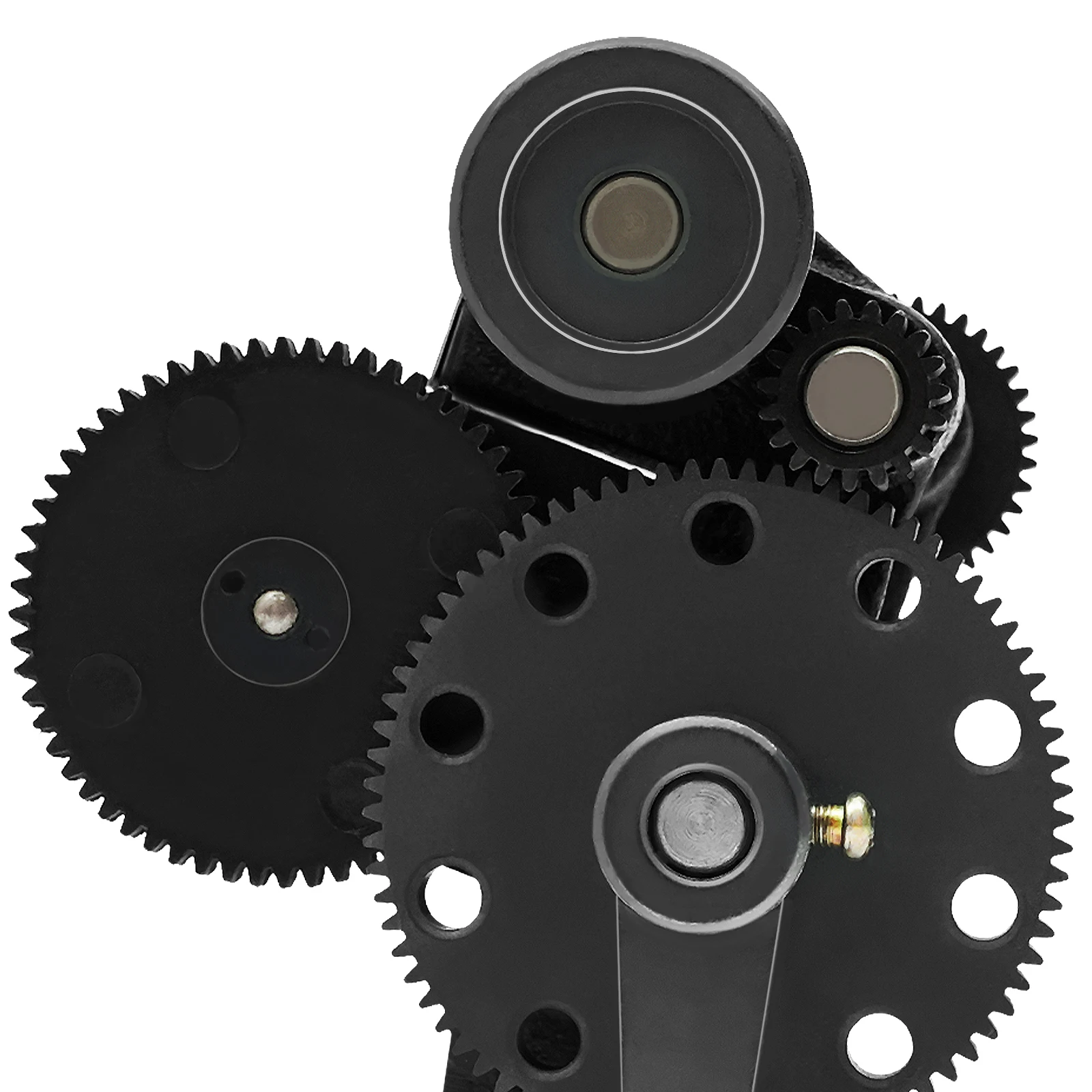

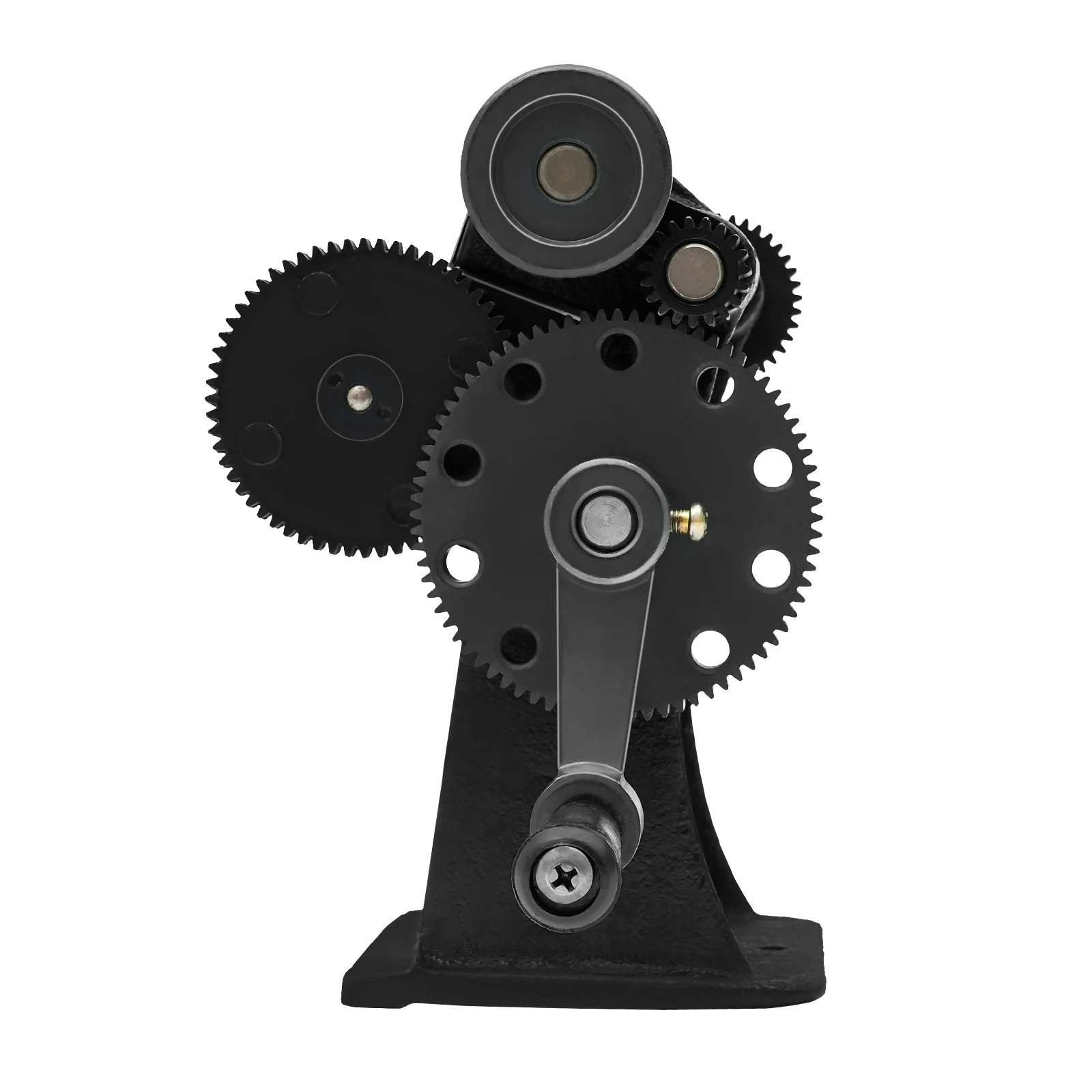

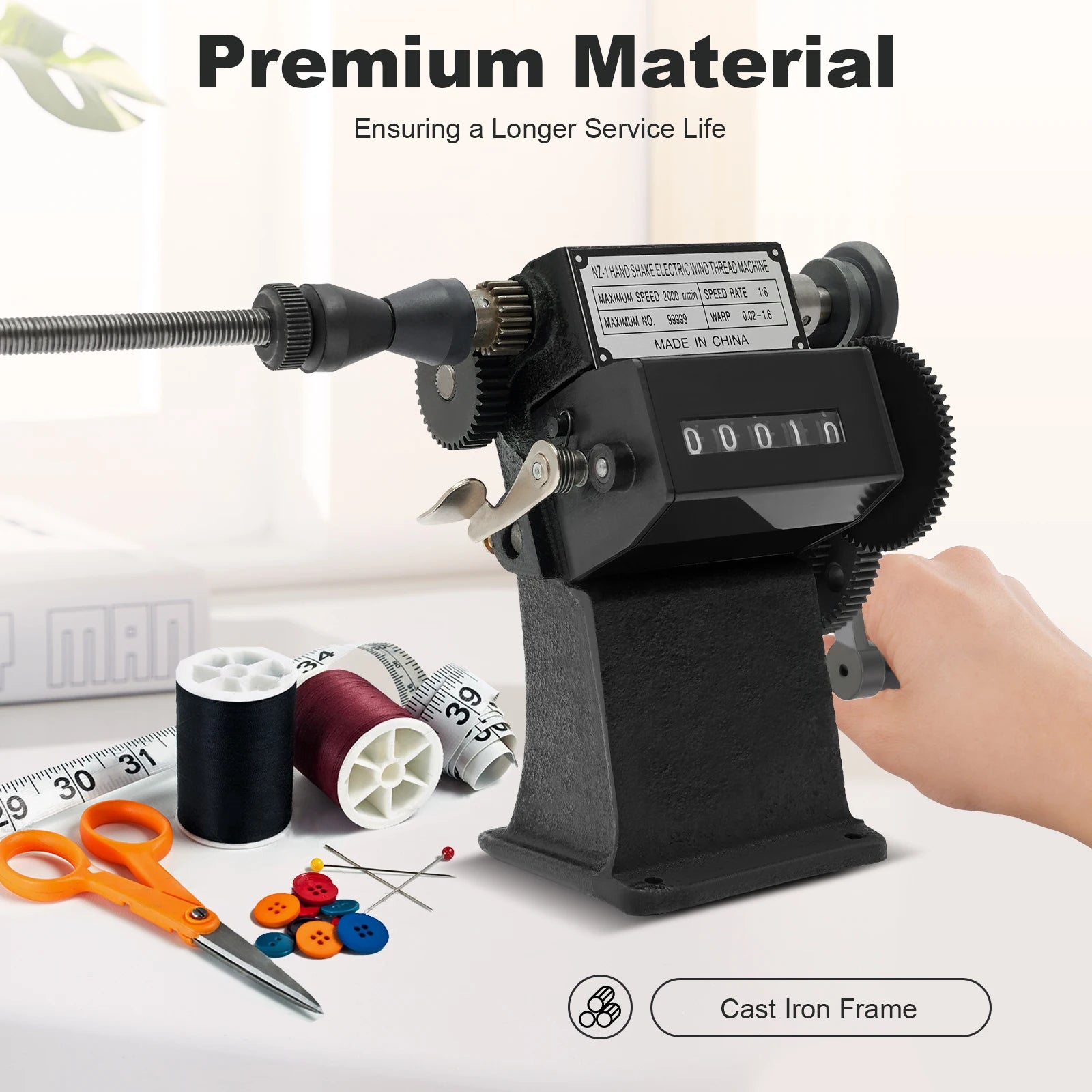

Material: Cast iron frame, steel gear

Max Diameter: 150 mm

Maximum width : 100 mm

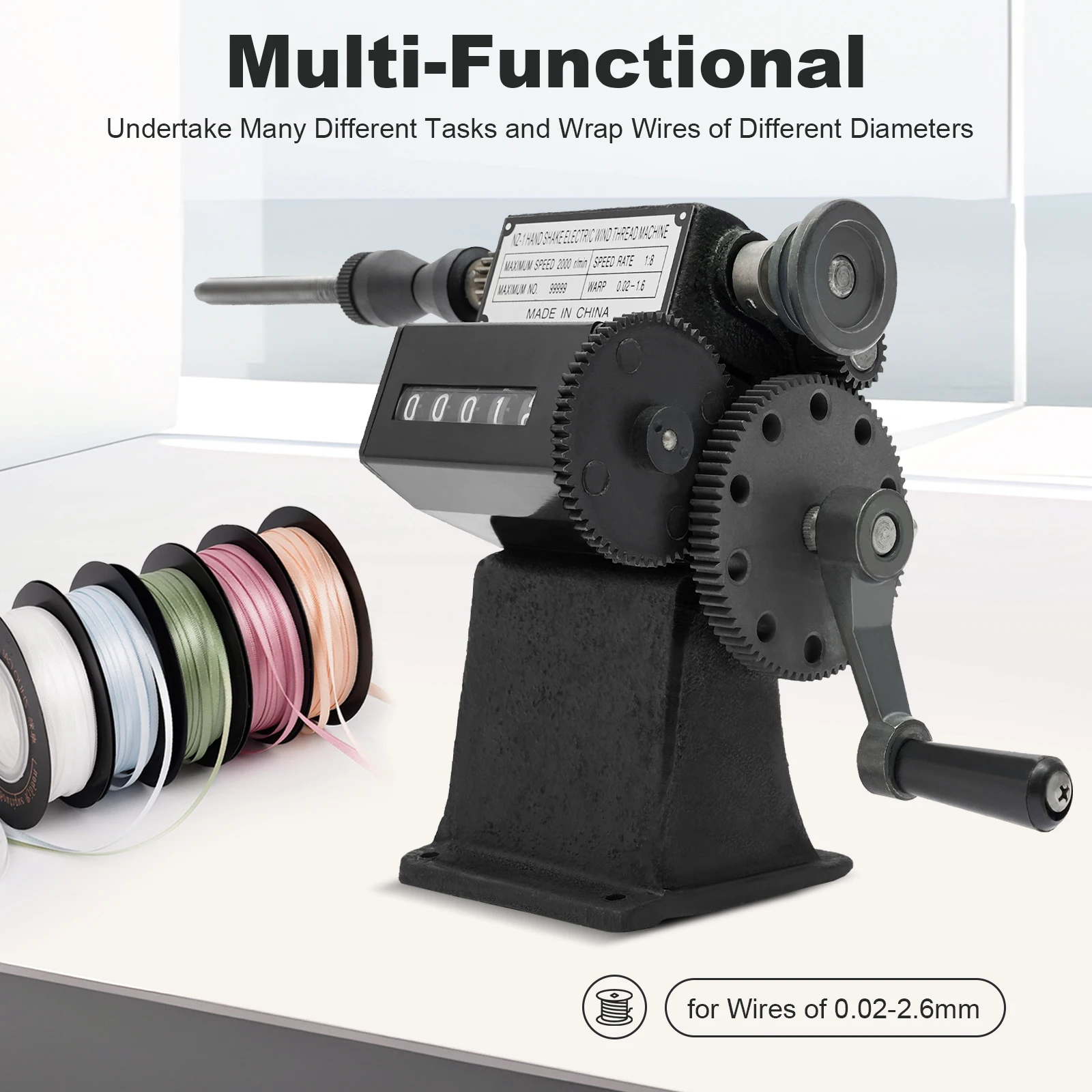

Wrap wire diameter: 0.02-2.6mm

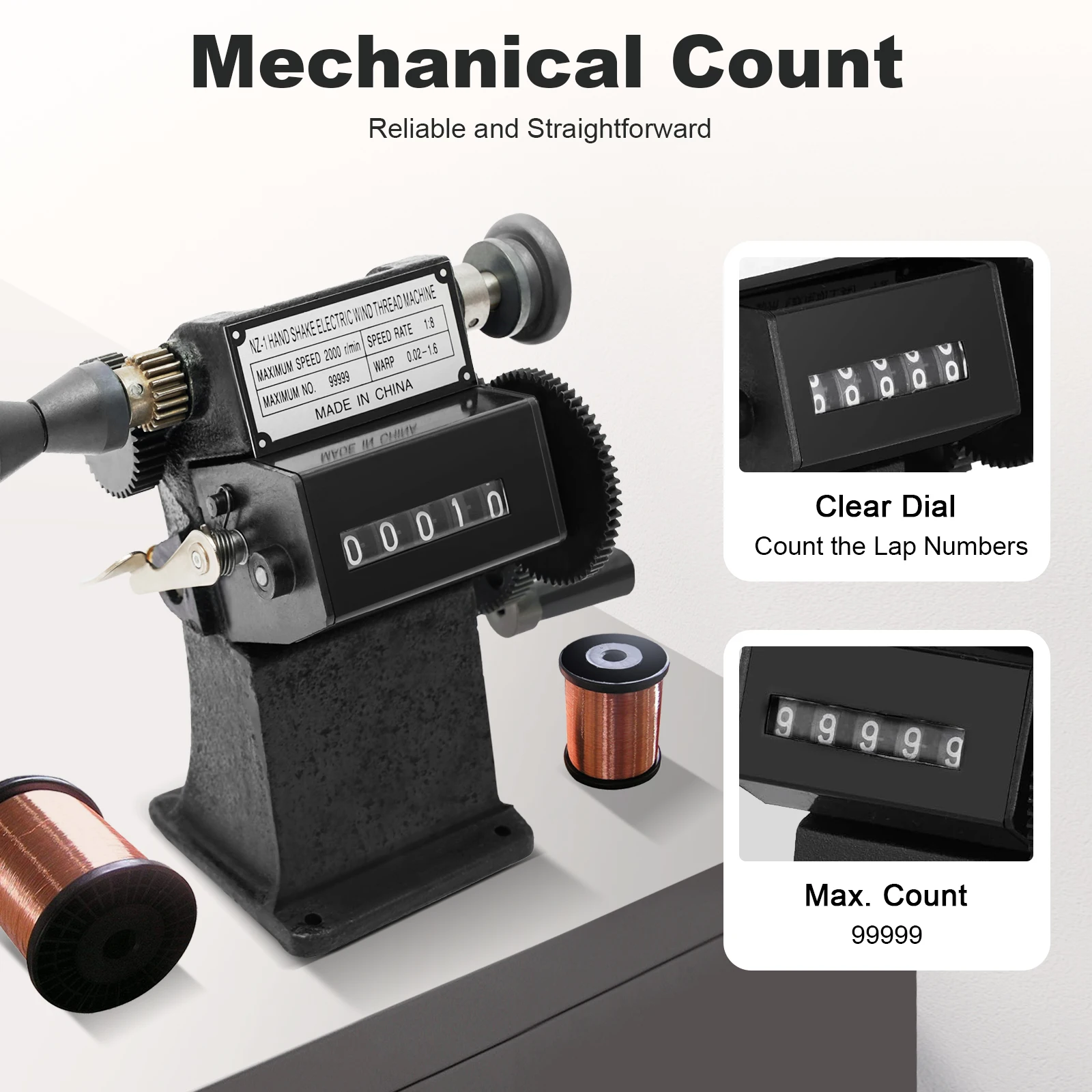

Count range: 0-99999

Transmission ratio: 1:8, 1:1

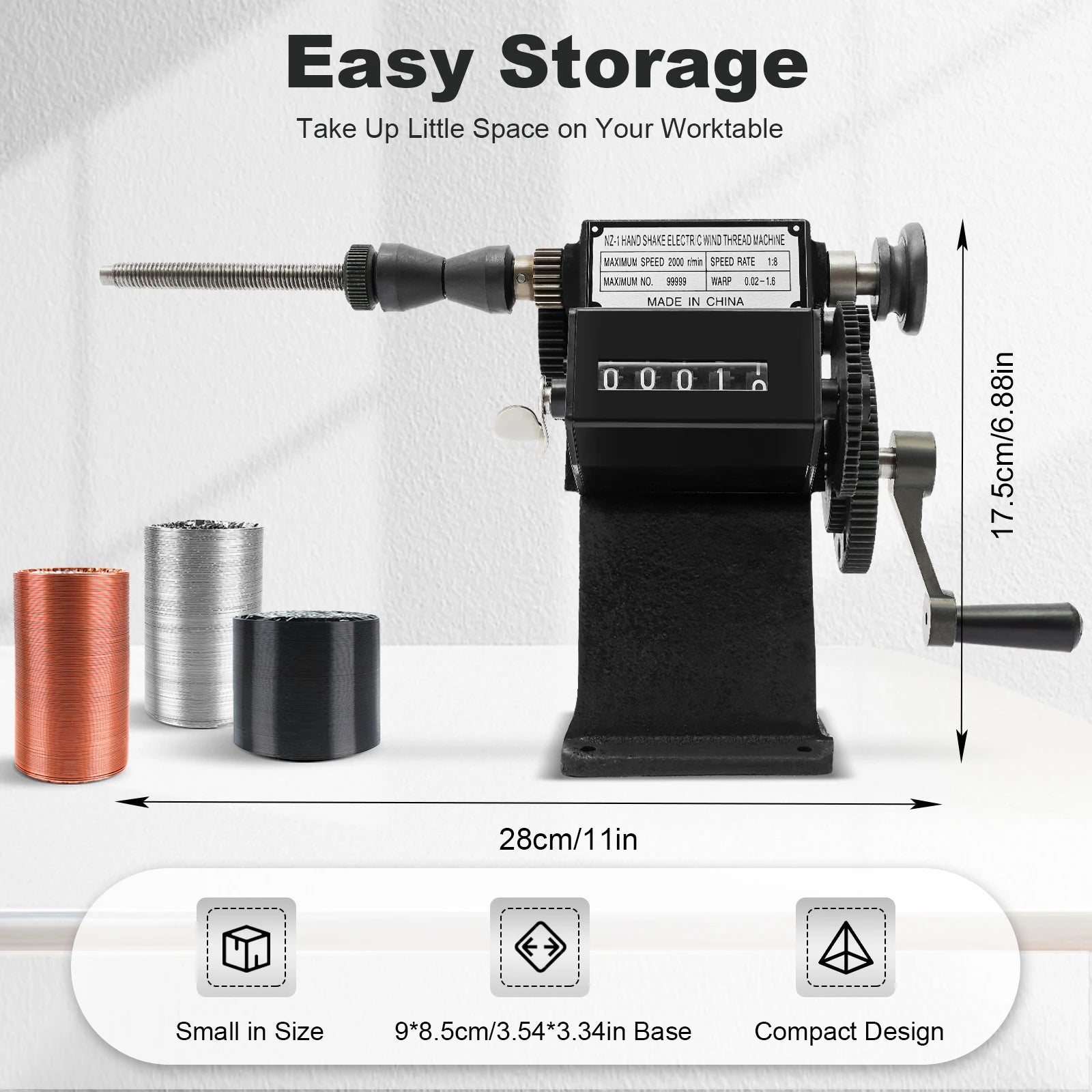

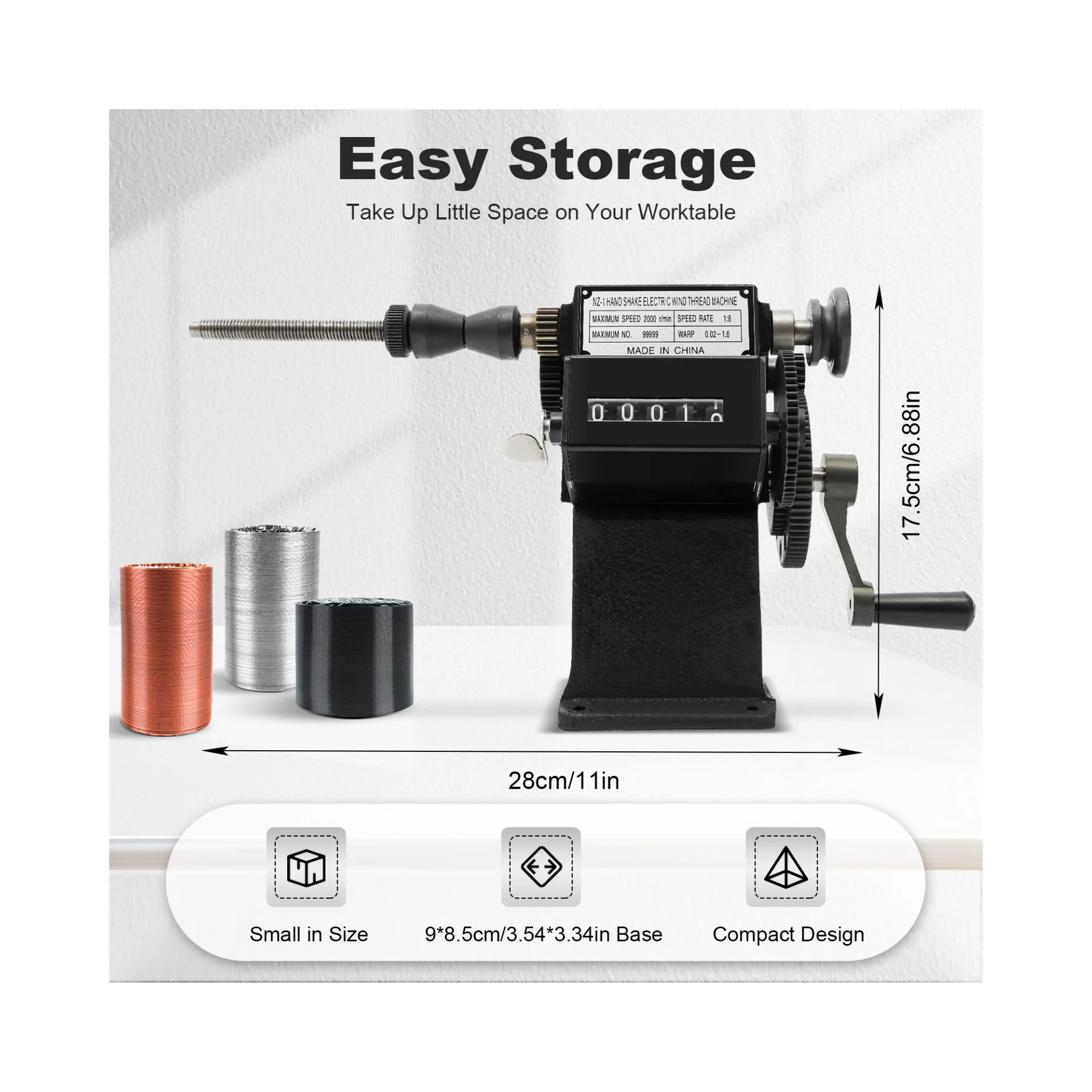

Size(LxWxH): 9.7x9x18cm

Max Width: 28cm

Package Included:

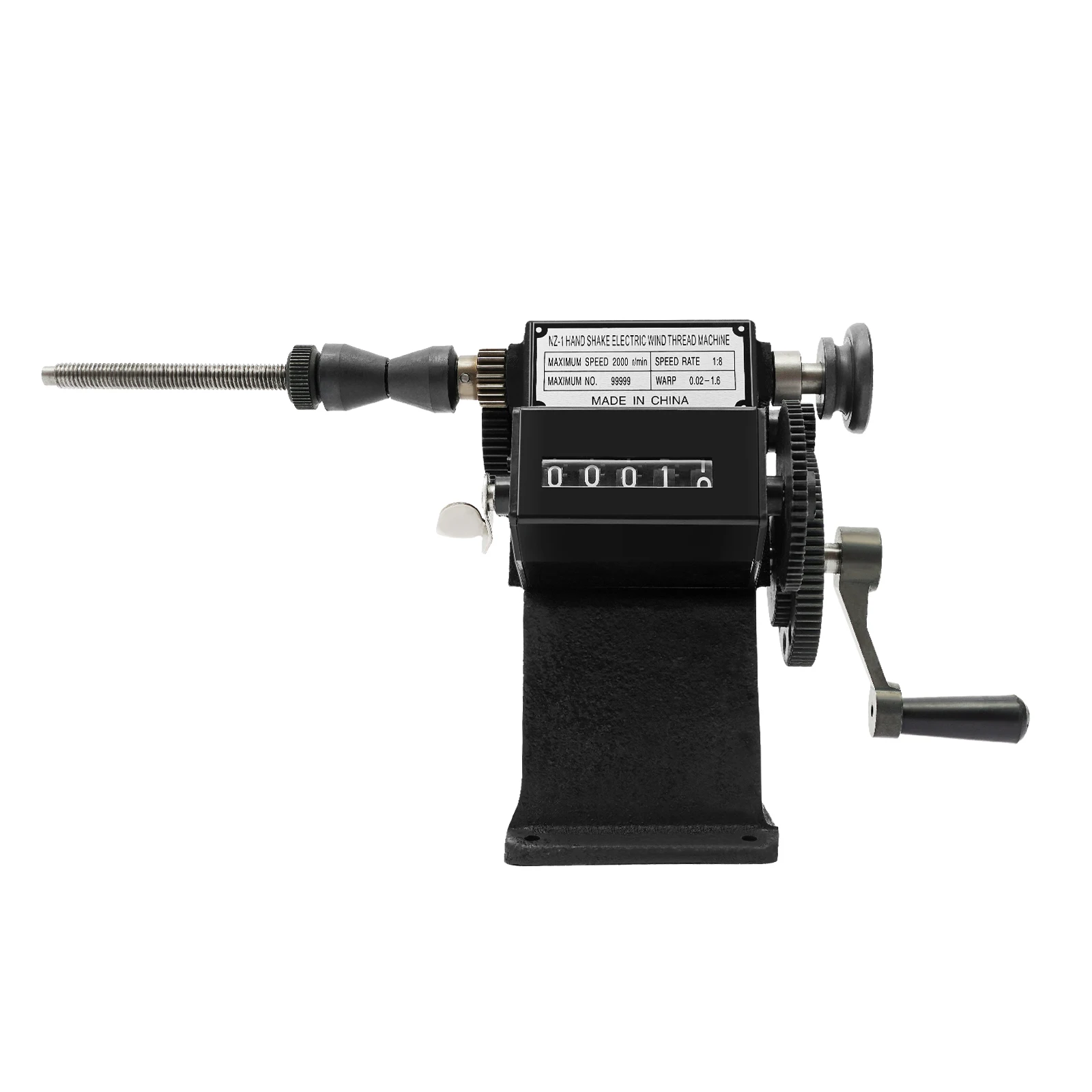

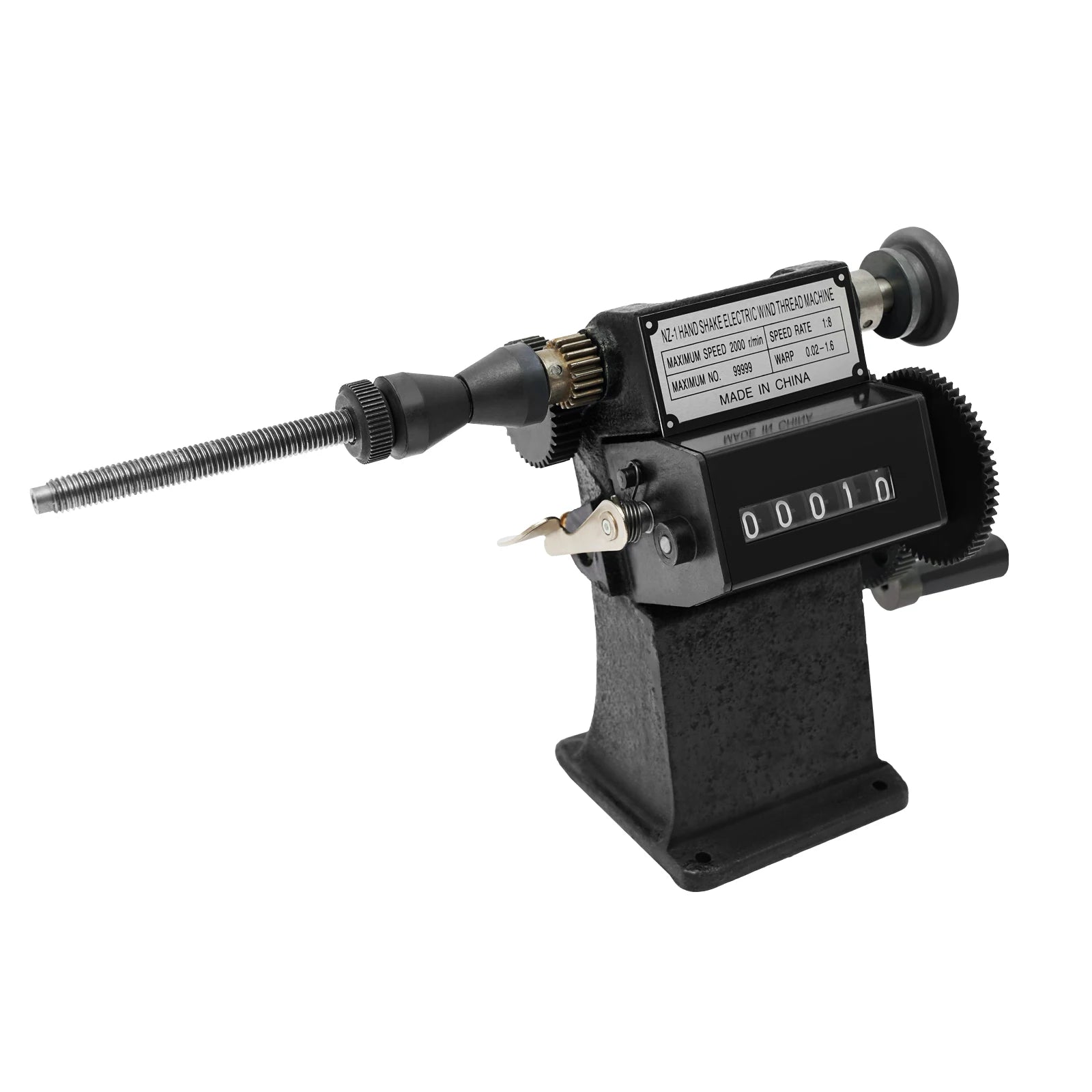

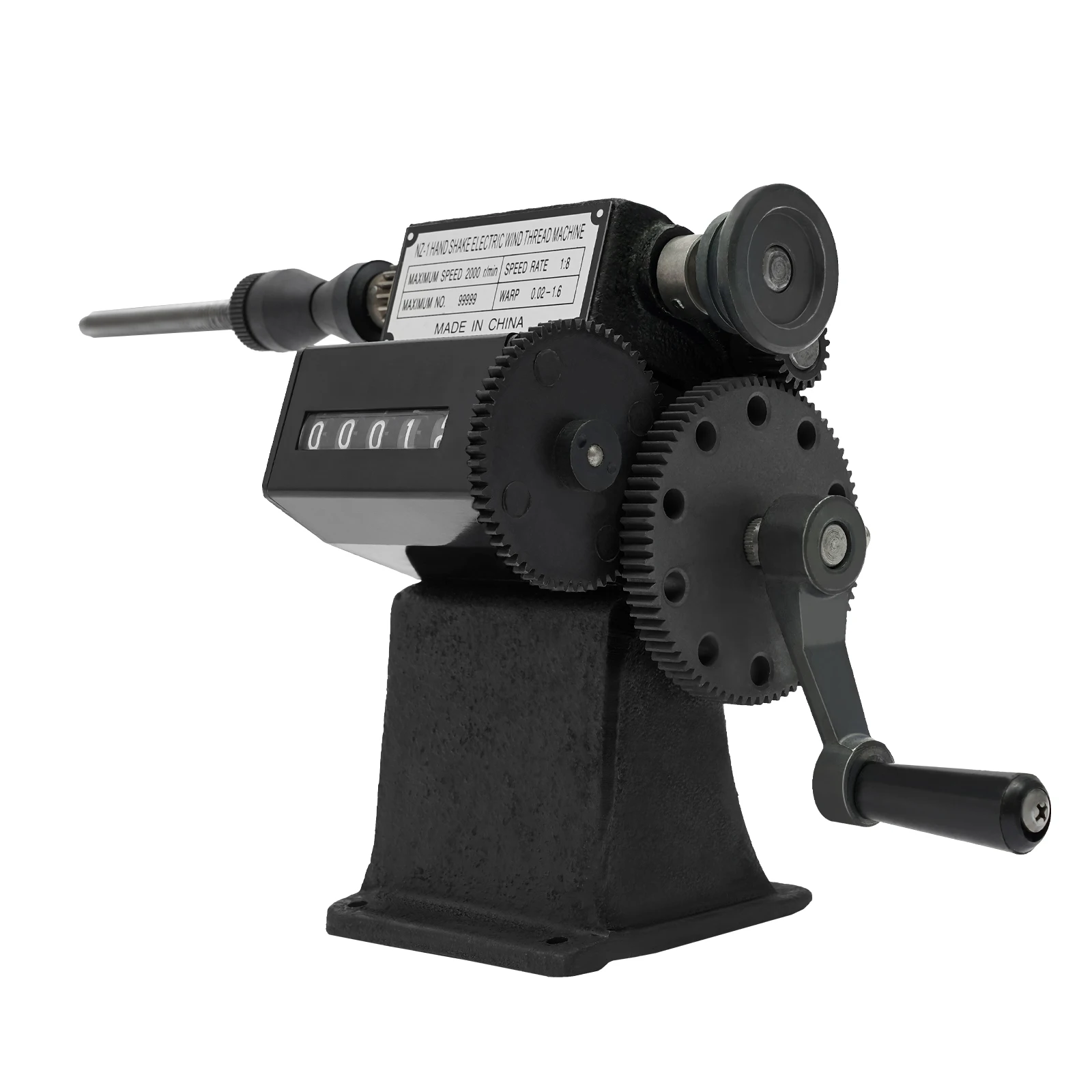

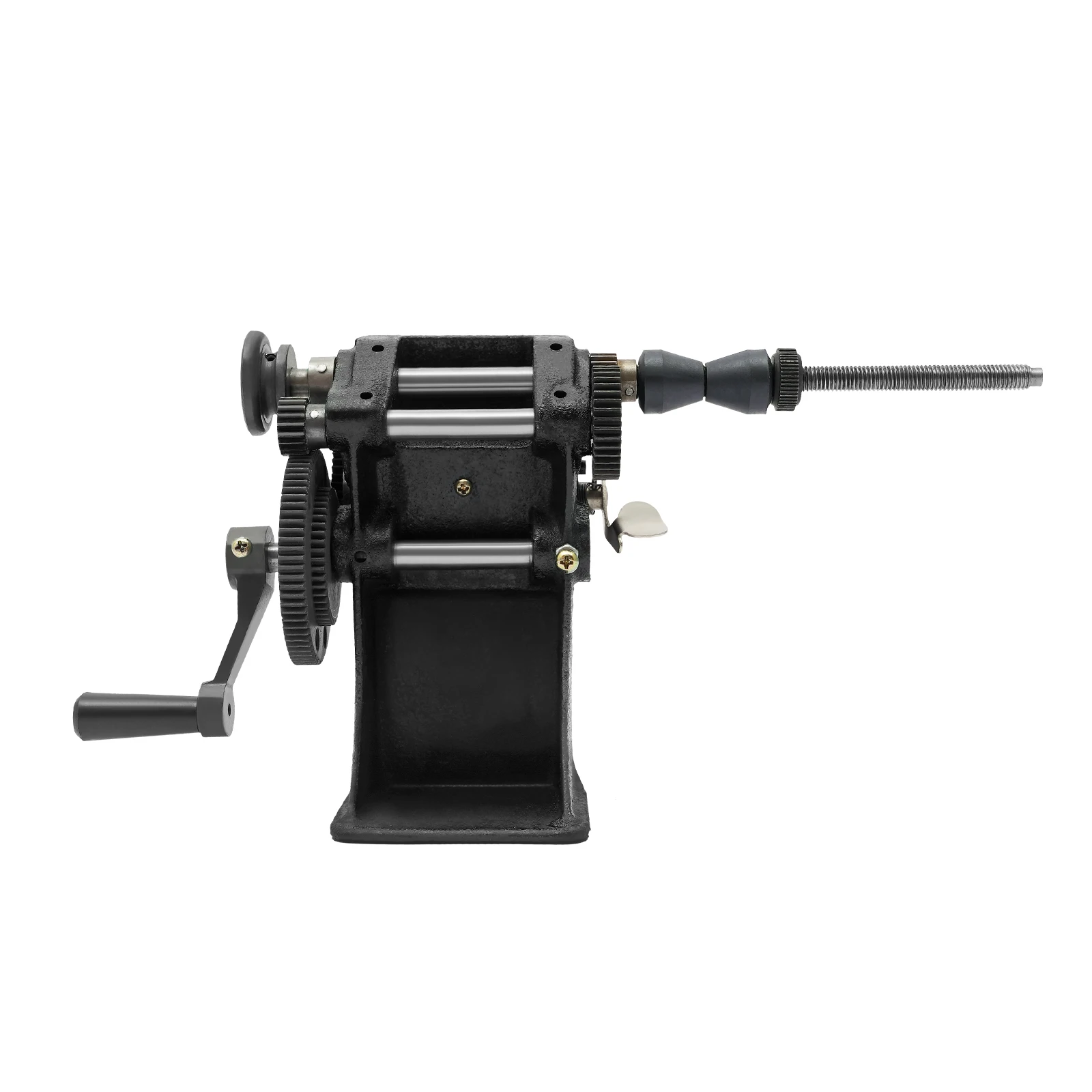

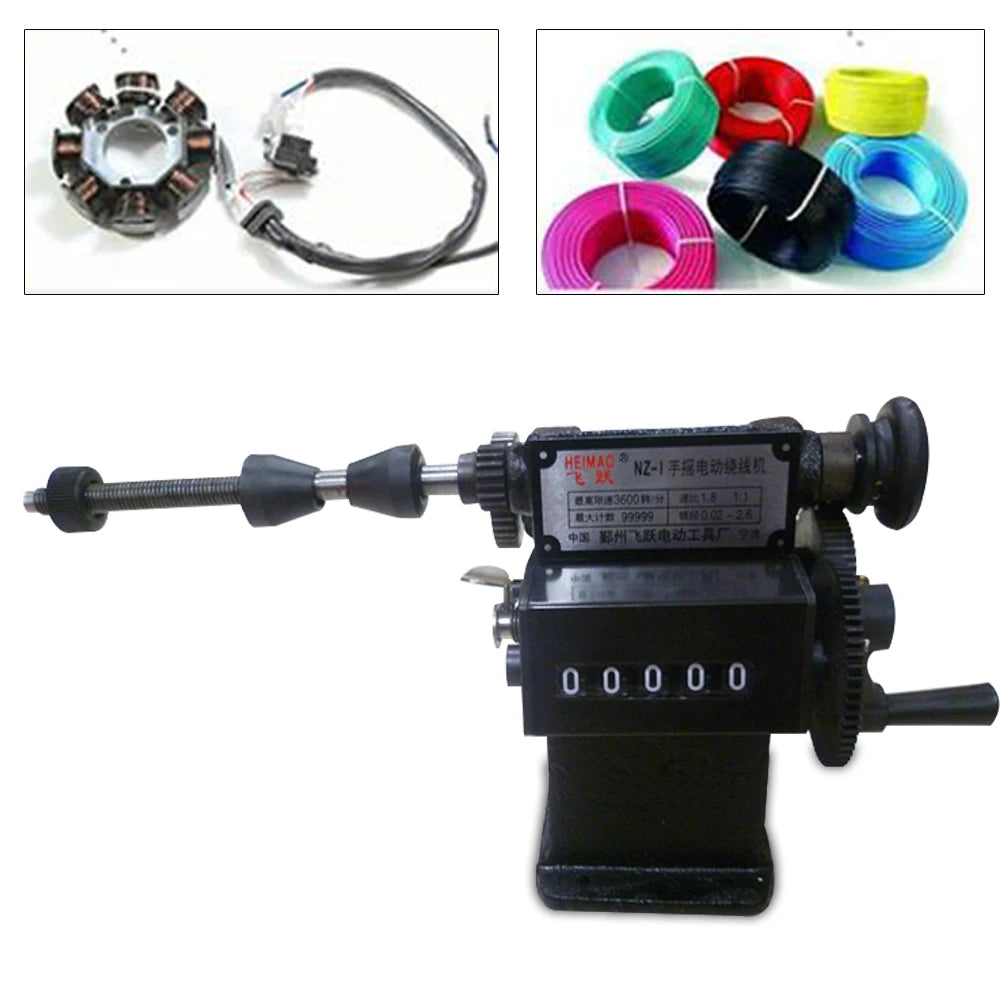

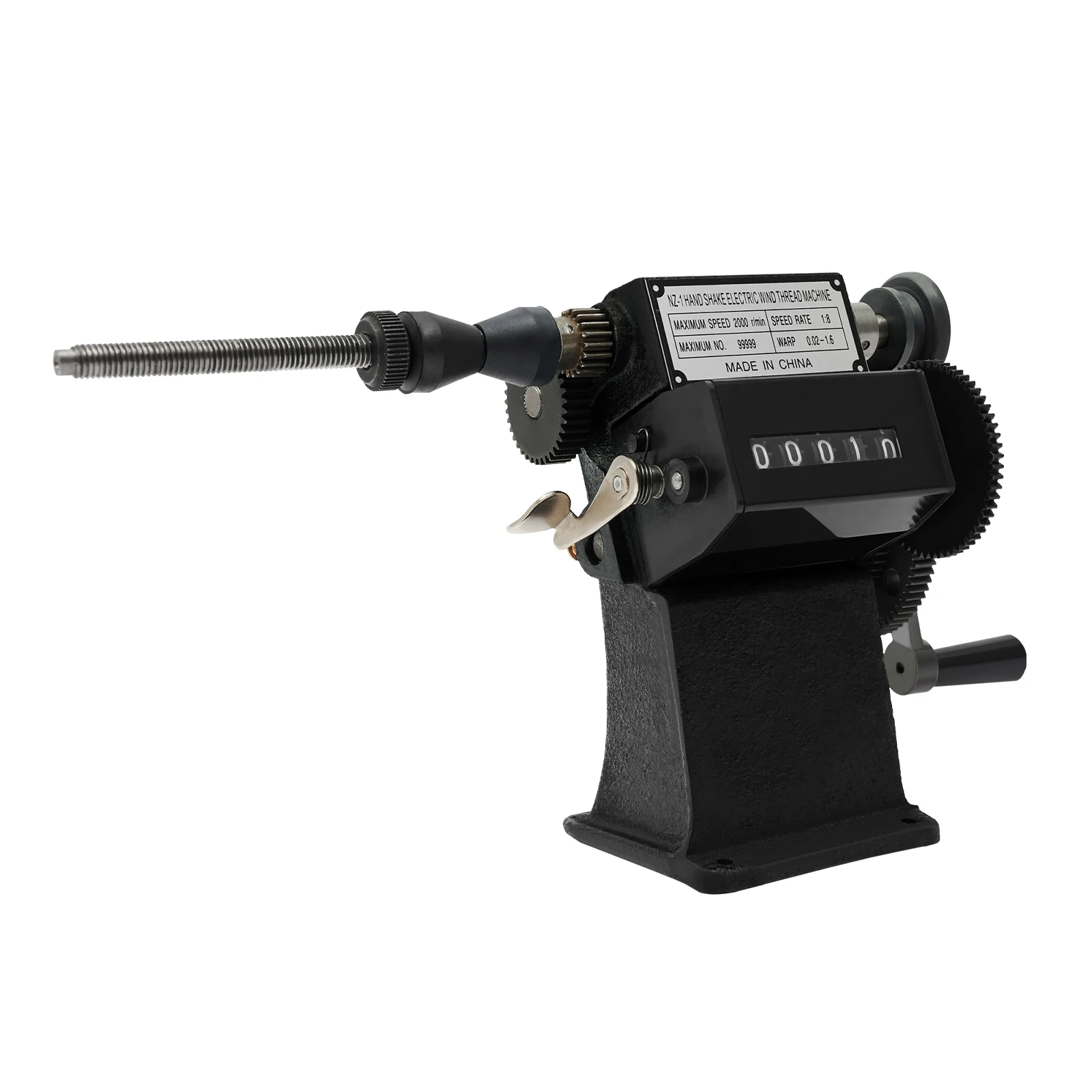

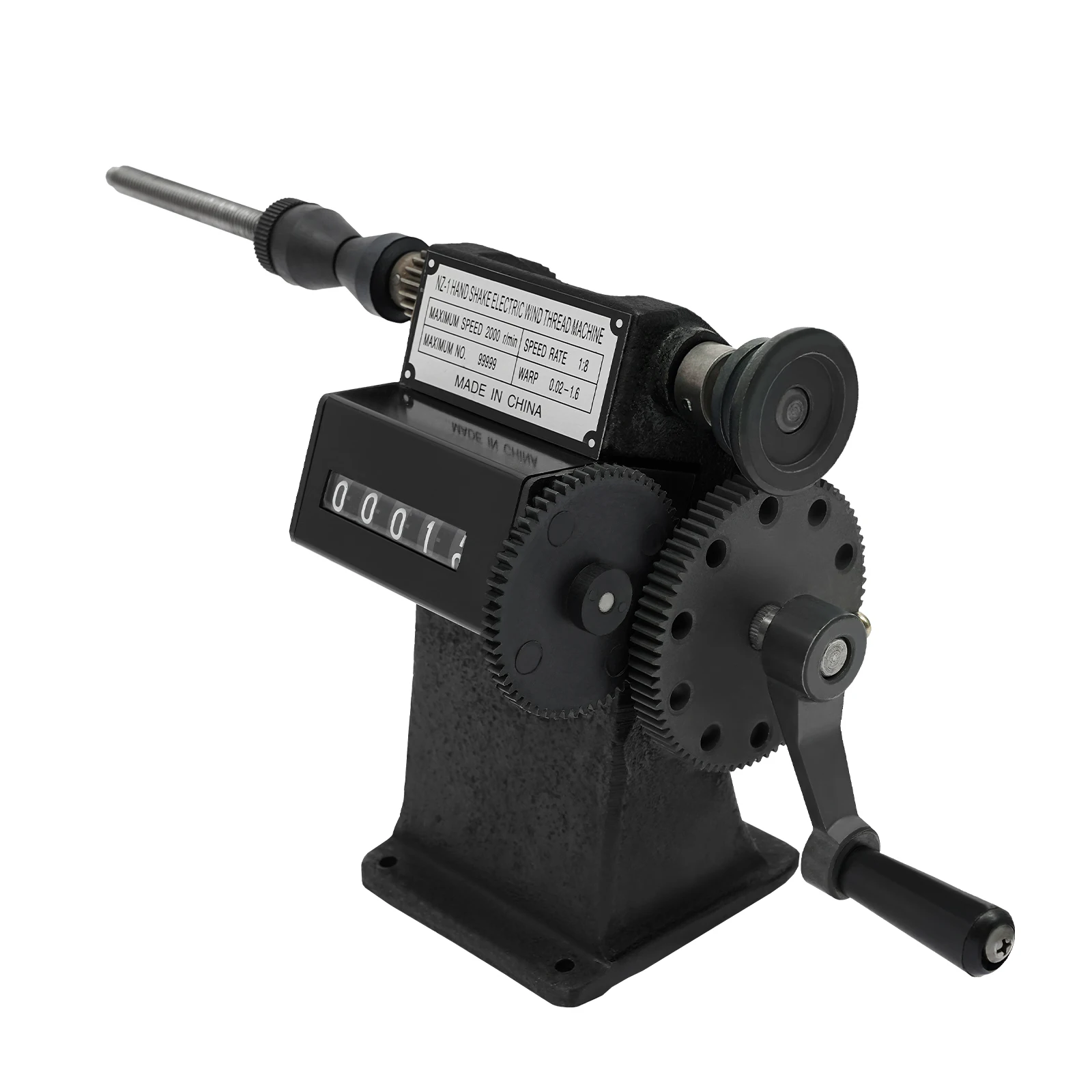

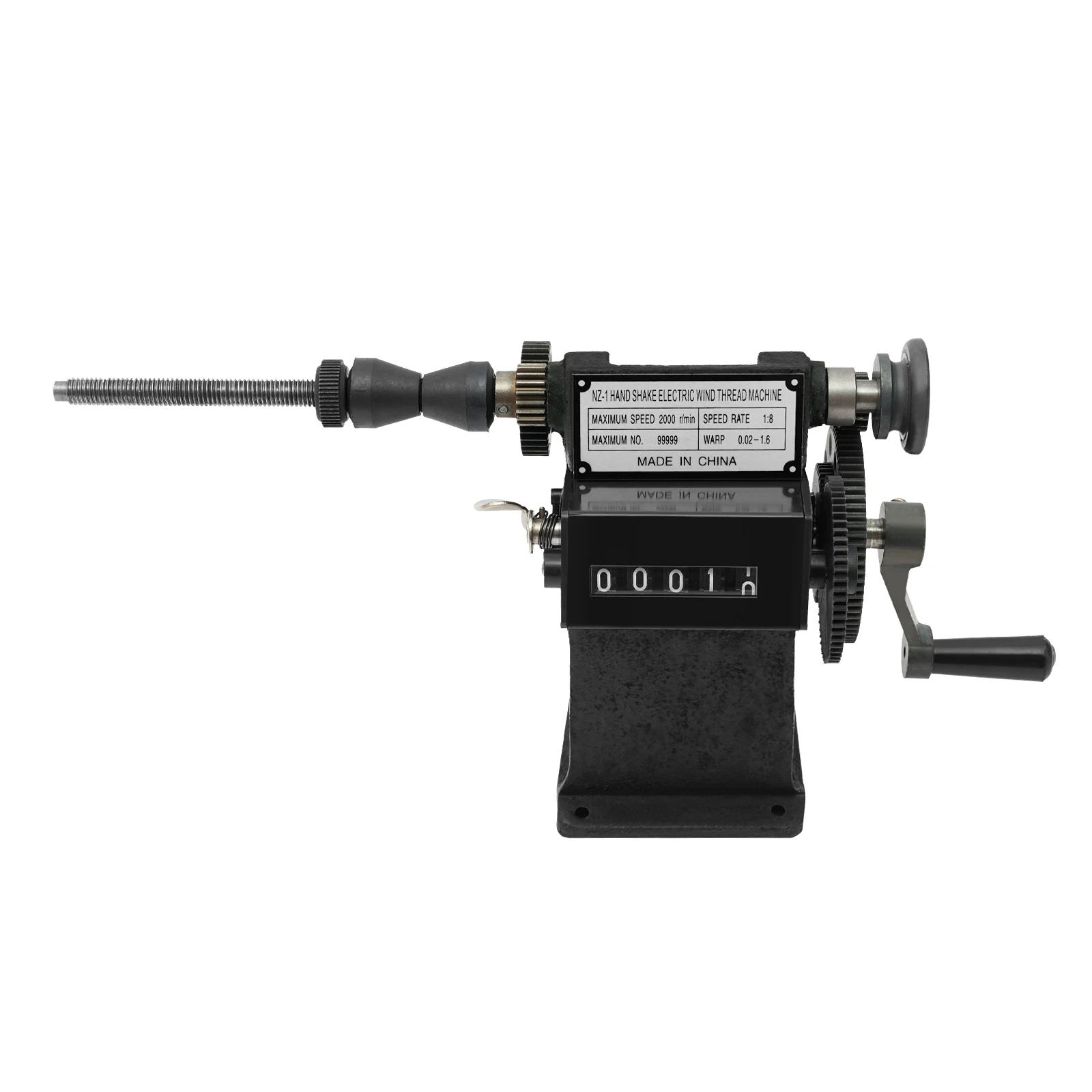

1 x Coil counting and winding machine

Instruction:

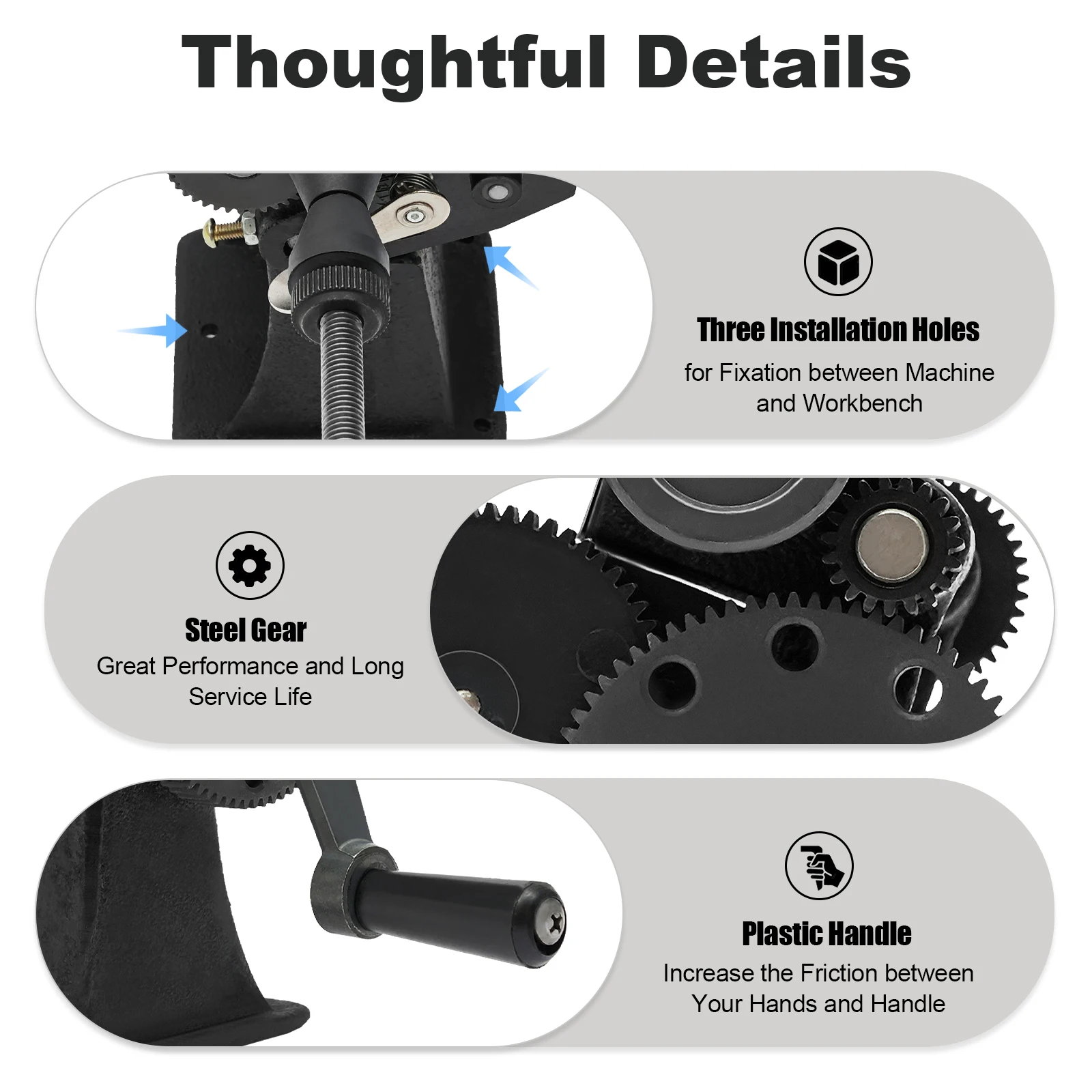

1. The machine should be placed on solid work on stage, stage face plate for wood, machine floor has three holes, used for fixed installation between native and workbench.

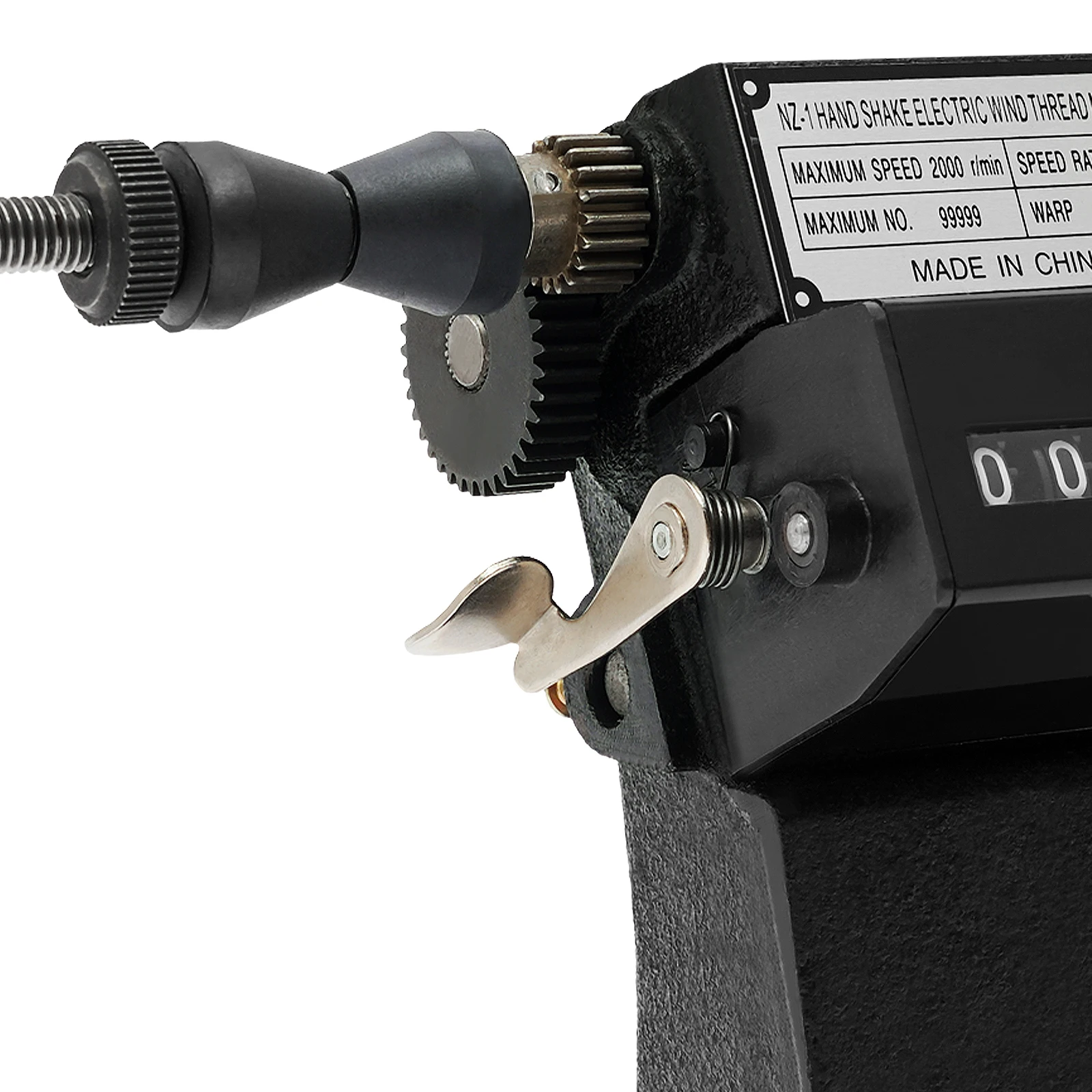

2. When used with his left hand pull (counter is reset to reset handle request reset handle pull twice,all of the counter gear Us into the reset state (or gear skid count) is not allowed, can start operation, can be finished after zero, it is strictly prohibited to zero during operation.
